IGM FR 1000T
All Complex Milling & Turning Operations

All Complex
Milling & Turning
Operations

Monoblock Cast Iron Main Body

Monoblock Cast Iron Main Body

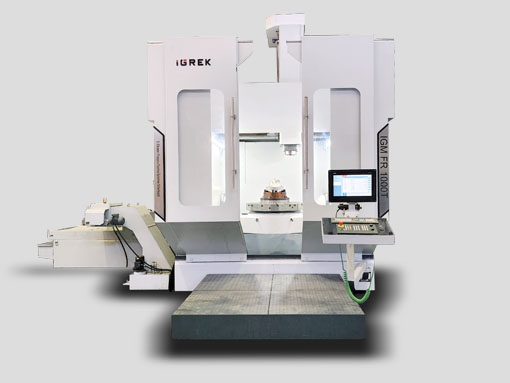

IGM FR 1000T

5-Axis Milling & Turning Center with Tilting Table

Igrek Machine Tools

Milling Capacity

X x Y x Z = 1350 x 1500 x 900 mm

Table Diameter: 1000 mm

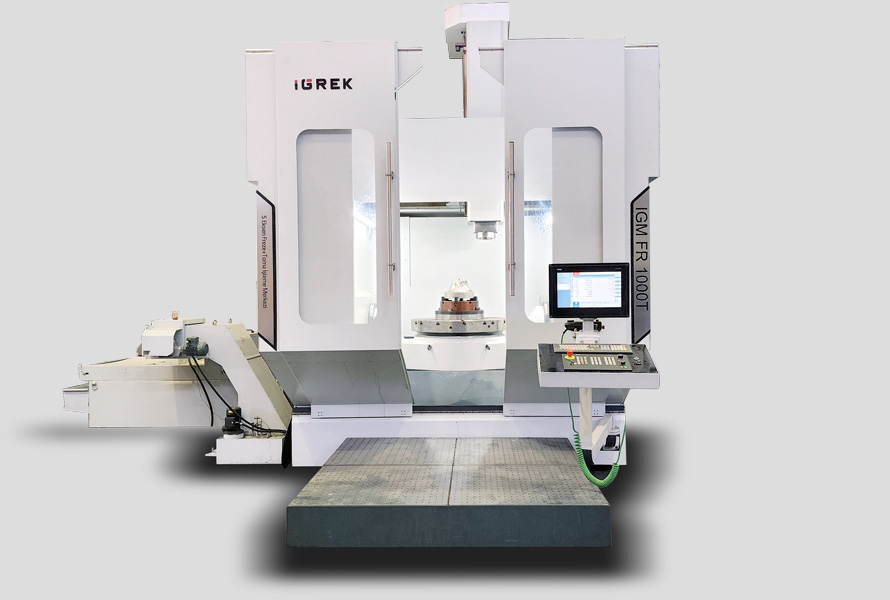

IGM FR 1000T

5-Axis Milling & Turning Center with Tilting Table

A high-end, mass production machine for precise milling and turning operations. With its cast iron single block body structure and superior automation, capable of processing all operations of complex geometry parts in one adjustment with high performance and short lead times.

  • All Complex Milling & Turning Operations
  • Monoblock Cast Iron Main Bod
  • Work Load Capacity: 2000 kg

Inquiry Form

Send your inquiry and questions about IGM FR 1000T!

Technical Details

Igrek Machine Tool IGM FR 1000T

X 1350
Stroke mm Y 1500
Z 900
A-Axis Rotation ° < +120 / -30 >
C-Axis Rotation ° ± 360
Accerelation m/s2 Y 4
X 48
Rapid Feedrate mm Y 48
Z 48
Spindle Speed rpm 14000
Nominal Spindle Power kW 60
Nominal Spindle Torque Nm 210
Tooling Taper Type HSK-A100
Tilting Table Properties
Max. Workpiece Diameter mm 1000
A-Axis Stroke ° < +120 / -30 >
A-Axis Power kW 20,34
A-Axis Speed rpm 100
Table Load kg 2000
A-Axis Max. Brake Torque Nm 10000
C-Axis Power kW 43
C-Axis Speed rpm 600
C-Axis Max. Brake Torque Nm 3176
C-Axis Max. Brake Torque Nm 10000
X 3200
Machine Size mm Y 6400
Z 4050
Machine Weight kg 40000
ATC Capacity 48

E-Catalog

For more information about Igrek Machine Tool IGM FR 1000T, please download the e-catalog!
